spring MVC基础: 建立一个app应用 (create a spring MVC step by step) for tomcat 7

访问量: 5295

( 原文参考: Spring MVC step by step )

1. 先建立好文件夹,格式如下:

1. src:  保存所有的 java 文件
2. war:  web相关的文件,以及用于生成部署的文件

2. 在 war 目录下 建立jsp文件

<html>
  <body>
    <h1>Example - Spring Application</h1>
    <p>This is my test.</p>
  </body>
</html>

3. 建立 WEB-INF/web.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.4"
         xmlns="http://java.sun.com/xml/ns/j2ee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
         http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd" >
  <welcome-file-list>
    <welcome-file>
      index.jsp
    </welcome-file>
  </welcome-file-list>
</web-app>

4. 建立 build.xml

<?xml version="1.0"?>

<project name="springapp" basedir="." default="usage">
    <property file="build.properties"/>

    <property name="src.dir" value="src"/>
    <property name="web.dir" value="war"/>
    <property name="build.dir" value="${web.dir}/WEB-INF/classes"/>
    <property name="name" value="springapp"/>

    <path id="master-classpath">
        <fileset dir="${web.dir}/WEB-INF/lib">
            <include name="*.jar"/>
        </fileset>
        <!-- We need the servlet API classes: -->
        <!--  * for Tomcat 5/6 use servlet-api.jar -->
        <!--  * for other app servers - check the docs -->
        <fileset dir="${appserver.lib}">
            <include name="servlet*.jar"/>
        </fileset>
        <pathelement path="${build.dir}"/>
    </path>

    <target name="usage">
        <echo message=""/>
        <echo message="${name} build file"/>
        <echo message="-----------------------------------"/>
        <echo message=""/>
        <echo message="Available targets are:"/>
        <echo message=""/>
        <echo message="build     --> Build the application"/>
        <echo message="deploy    --> Deploy application as directory"/>
        <echo message="deploywar --> Deploy application as a WAR file"/>
        <echo message="install   --> Install application in Tomcat"/>
        <echo message="reload    --> Reload application in Tomcat"/>
        <echo message="start     --> Start Tomcat application"/>
        <echo message="stop      --> Stop Tomcat application"/>
        <echo message="list      --> List Tomcat applications"/>
        <echo message=""/>
    </target>

    <target name="build" description="Compile main source tree java files">
        <mkdir dir="${build.dir}"/>
        <javac destdir="${build.dir}" source="1.5" target="1.5" debug="true"
               deprecation="false" optimize="false" failonerror="true"
               includeantruntime="false">
            <src path="${src.dir}"/>
            <classpath refid="master-classpath"/>
        </javac>
    </target>

    <target name="deploy" depends="build" description="Deploy application">
        <copy todir="${deploy.path}/${name}" preservelastmodified="true">
            <fileset dir="${web.dir}">
                <include name="**/*.*"/>
            </fileset>
        </copy>
    </target>

    <target name="deploywar" depends="build" description="Deploy application as a WAR file">
        <war destfile="${name}.war"
             webxml="${web.dir}/WEB-INF/web.xml">
            <fileset dir="${web.dir}">
                <include name="**/*.*"/>
            </fileset>
        </war>
        <copy todir="${deploy.path}" preservelastmodified="true">
            <fileset dir=".">
                <include name="*.war"/>
            </fileset>
        </copy>
    </target>

<!-- ============================================================== -->

<!-- Tomcat tasks - remove these if you don't have Tomcat installed -->

<!-- ============================================================== -->


    <path id="catalina-ant-classpath">
        <!-- We need the Catalina jars for Tomcat -->
        <!--  * for other app servers - check the docs -->
        <fileset dir="${appserver.lib}">
            <include name="catalina-ant.jar"/>
        </fileset>
    </path>

    <taskdef name="install" classname="org.apache.catalina.ant.InstallTask">
        <classpath refid="catalina-ant-classpath"/>
    </taskdef>
    <taskdef name="reload" classname="org.apache.catalina.ant.ReloadTask">
        <classpath refid="catalina-ant-classpath"/>
    </taskdef>
    <taskdef name="list" classname="org.apache.catalina.ant.ListTask">
        <classpath refid="catalina-ant-classpath"/>
    </taskdef>
    <taskdef name="start" classname="org.apache.catalina.ant.StartTask">
        <classpath refid="catalina-ant-classpath"/>
    </taskdef>
    <taskdef name="stop" classname="org.apache.catalina.ant.StopTask">
        <classpath refid="catalina-ant-classpath"/>
    </taskdef>

    <target name="install" description="Install application in Tomcat">
        <install url="${tomcat.manager.url}"
                 username="${tomcat.manager.username}"
                 password="${tomcat.manager.password}"
                 path="/${name}"
                 war="${name}"/>
    </target>

    <target name="reload" description="Reload application in Tomcat">
        <reload url="${tomcat.manager.url}"
                 username="${tomcat.manager.username}"
                 password="${tomcat.manager.password}"
                 path="/${name}"/>
    </target>

    <target name="start" description="Start Tomcat application">
        <start url="${tomcat.manager.url}"
                 username="${tomcat.manager.username}"
                 password="${tomcat.manager.password}"
                 path="/${name}"/>
    </target>

    <target name="stop" description="Stop Tomcat application">
        <stop url="${tomcat.manager.url}"
                 username="${tomcat.manager.username}"
                 password="${tomcat.manager.password}"
                 path="/${name}"/>
    </target>

    <target name="list" description="List Tomcat applications">
        <list url="${tomcat.manager.url}"
                 username="${tomcat.manager.username}"
                 password="${tomcat.manager.password}"/>
    </target>

<!-- End Tomcat tasks -->


</project>

5. 建立 build.properties

# Ant properties for building the springapp

appserver.home=${user.home}/apache-tomcat-7
# for Tomcat 5 use $appserver.home}/server/lib
# for Tomcat 6 use $appserver.home}/lib
appserver.lib=${appserver.home}/lib

deploy.path=${appserver.home}/webapps

# this url is very important to tomcat7: '/text', otherwise it won't work. tomcat.manager.url=http://localhost:8080/manager/text tomcat.manager.username=admin tomcat.manager.password=admin

6. 修改tomcat 配置文件(manager的用户)

<?xml version='1.0' encoding='utf-8'?>
<tomcat-users>
  <role rolename="manager-gui"/>
  <role rolename="manager-script"/>
  <user username="admin" password="admin" roles="manager-gui,manager-script"/>
</tomcat-users>

7. 修改 build.xml ,如果你使用tomcat7的话:


  <taskdef name="install" classname="org.apache.catalina.ant.DeployTask">

8. 运行 $ ant , $ant deploy, $ant list

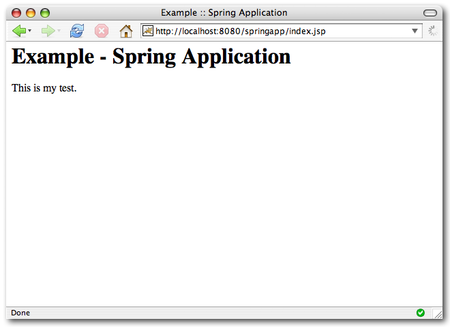

9. open:   http://localhost:8080/springapp

Springapp

10. 修改web.xml:

<?xml version="1.0" encoding="UTF-8"?>

<web-app version="2.4"
         xmlns="http://java.sun.com/xml/ns/j2ee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
         http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd" >

  <servlet>
    <servlet-name>springapp</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <load-on-startup>1</load-on-startup>
  </servlet>

  <servlet-mapping>
    <servlet-name>springapp</servlet-name>
    <url-pattern>*.htm</url-pattern>
  </servlet-mapping>


  <welcome-file-list>
    <welcome-file>
      index.jsp
    </welcome-file>
  </welcome-file-list>

</web-app>

12. 建立 WEB-INF/springapp-servlet.xml, 注意,这个文件的名字是由上面的 <servlet-name> 中的值决定的。也是一个命名优先规则。

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans-2.5.xsd">
  <!-- the application context definition for the springapp DispatcherServlet -->

  <bean name="/hello.htm" class="springapp.web.HelloController"/>
</beans>

13. 把需要用到的lib 文件复制到 WEB-INF/lib下。我把所有的jar文件都复制过来了。。。记得还要有commons-logging.jar, junit-4.10.jar

14. 建立一个controller

package springapp.web;

import org.springframework.web.servlet.mvc.Controller;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import java.io.IOException;

public class HelloController implements Controller {
    protected final Log logger = LogFactory.getLog(getClass());
    public ModelAndView handleRequest(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        logger.info("Returning hello view");
        return new ModelAndView("hello.jsp");
    }
}

15. 建立一个 测试文件: 'springapp/test/springapp/web/HelloControllerTests.java':

package springapp.web;
import org.springframework.web.servlet.ModelAndView;
import springapp.web.HelloController;
import junit.framework.TestCase;
public class HelloControllerTests extends TestCase {
    public void testHandleRequestView() throws Exception{
        HelloController controller = new HelloController();
        ModelAndView modelAndView = controller.handleRequest(null, null);
        assertEquals("hello.jsp", modelAndView.getViewName());
    }
}

16. 编辑 build.xml,加入 两个任务:

    <property name="test.dir" value="test"/>

    <target name="buildtests" description="Compile test tree java files">
        <mkdir dir="${build.dir}"/>
        <javac destdir="${build.dir}" source="1.5" target="1.5" debug="true"
            deprecation="false" optimize="false" failonerror="true"
            includeantruntime="false">
            <src path="${test.dir}"/>
            <classpath refid="master-classpath"/>
        </javac>
    </target>

    <target name="tests" depends="build, buildtests" description="Run tests">
        <junit printsummary="on"
            fork="false"
            haltonfailure="false"
            failureproperty="tests.failed"
            showoutput="true">
            <classpath refid="master-classpath"/>
            <formatter type="brief" usefile="false"/>

            <batchtest>
                <fileset dir="${build.dir}">
                    <include name="**/*Tests.*"/>
                </fileset>
            </batchtest>

        </junit>

        <fail if="tests.failed">
            tests.failed=${tests.failed}
            ***********************************************************
            ***********************************************************
            ****  One or more tests failed!  Check the output ...  ****
            ***********************************************************
            ***********************************************************
        </fail>
    </target>

17. 运行ant tests 命令。

sg552@siwei-moto:~/workspace/new_dashboard_portal$ ant tests
Buildfile: /home/sg552/workspace/new_dashboard_portal/build.xml

build:

buildtests:
    [javac] Compiling 1 source file to /home/sg552/workspace/new_dashboard_portal/war/WEB-INF/classes

tests:
    [junit] Running HelloControllerTests
    [junit] Testsuite: HelloControllerTests
    [junit] Tests run: 1, Failures: 0, Errors: 0, Time elapsed: 0.012 sec
    [junit] Tests run: 1, Failures: 0, Errors: 0, Time elapsed: 0.012 sec
    [junit]

BUILD SUCCESSFUL
Total time: 1 second

18. 建立 hello.jsp ('springapp/war/hello.jsp')

<html>
  <head><title>Hello :: Spring Application</title></head>
  <body>
    <h1>Hello - Spring Application</h1>
    <p>Greetings.</p>
  </body>
</html>

19 . 编译,部署

$ ant deploy reload

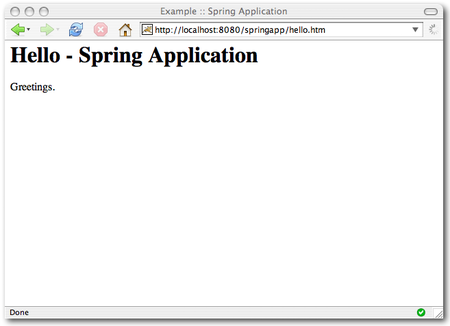

20 查看 http://localhost:8080/springapp/hello.htm 结果

Springapp
